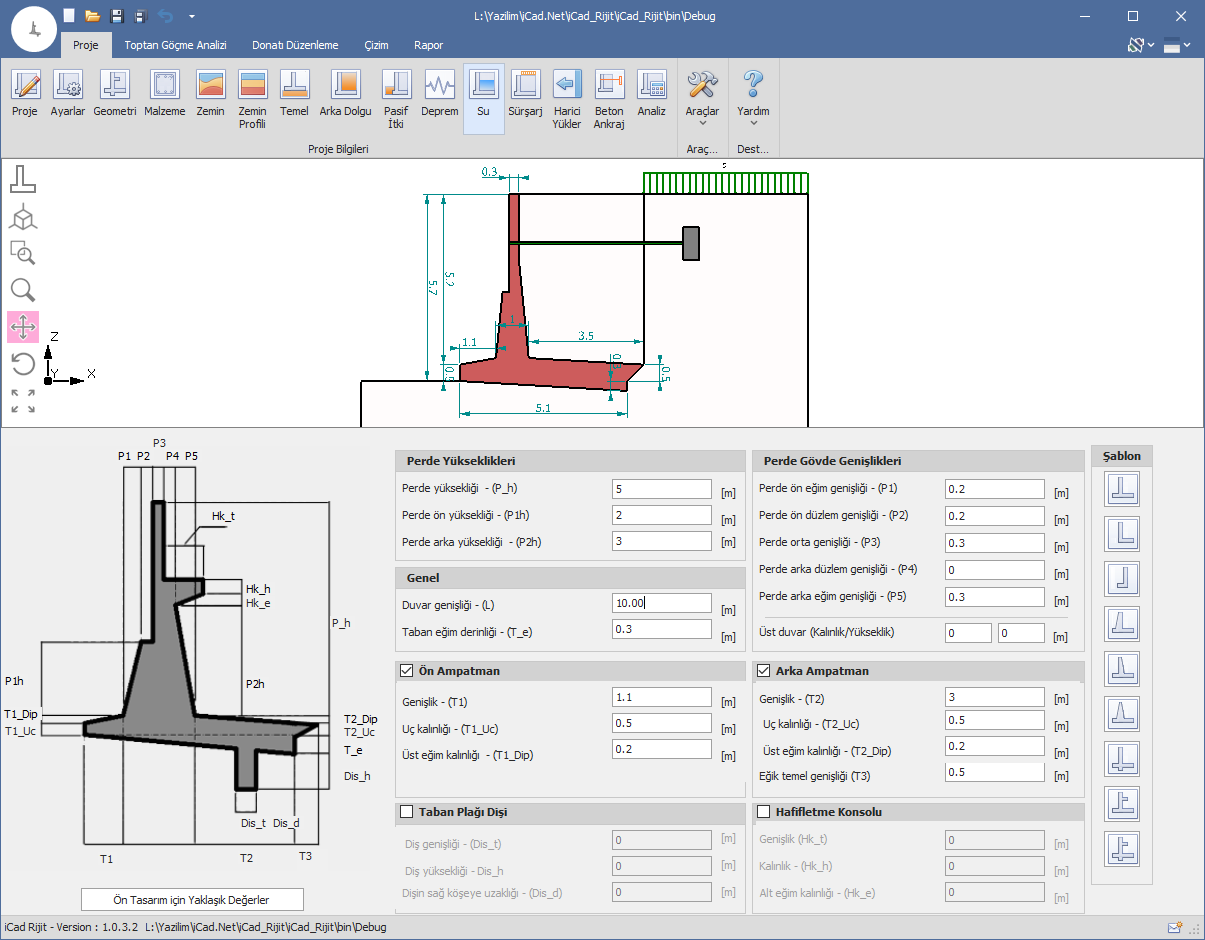

The solutions for retaining walls of stone, concrete, reinforced concrete cantilevers, and caisson foundations can be performed.

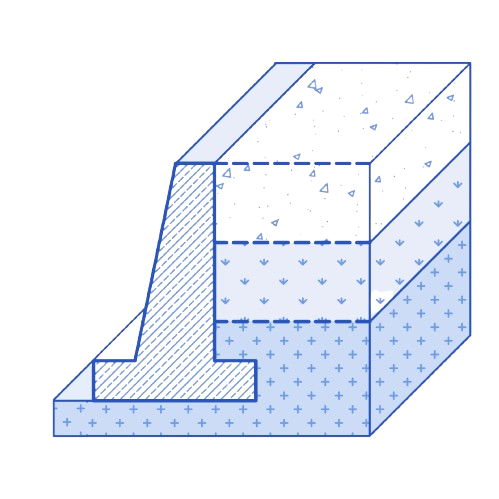

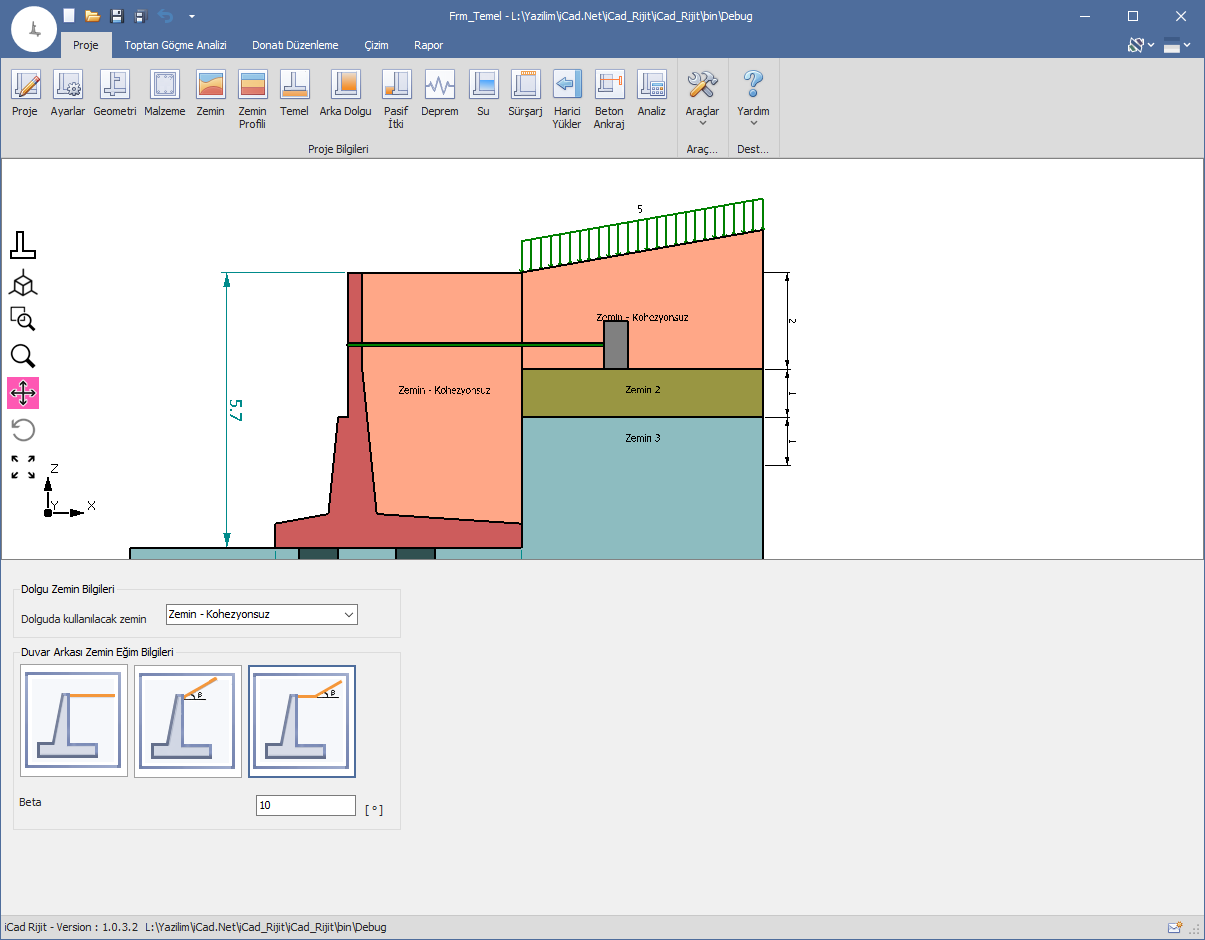

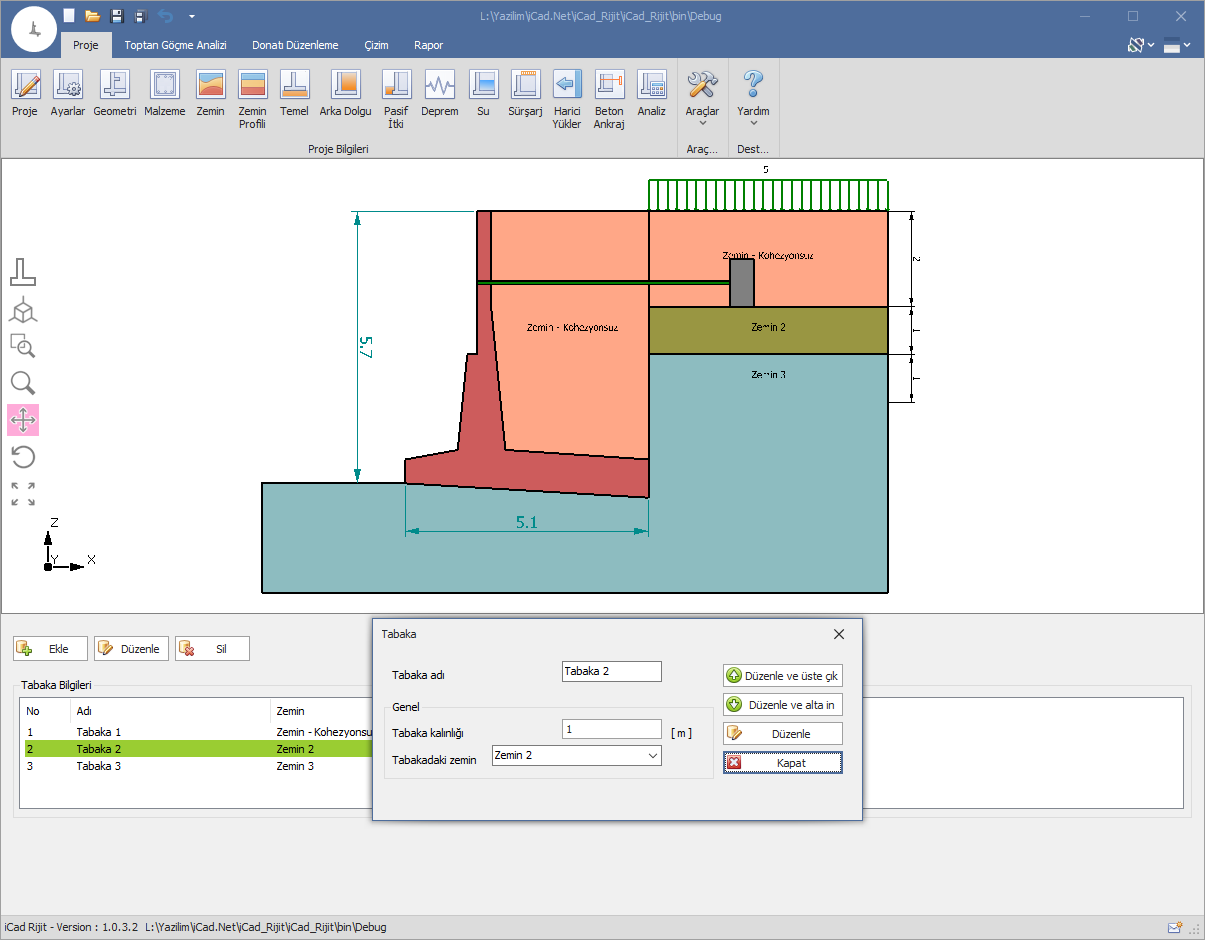

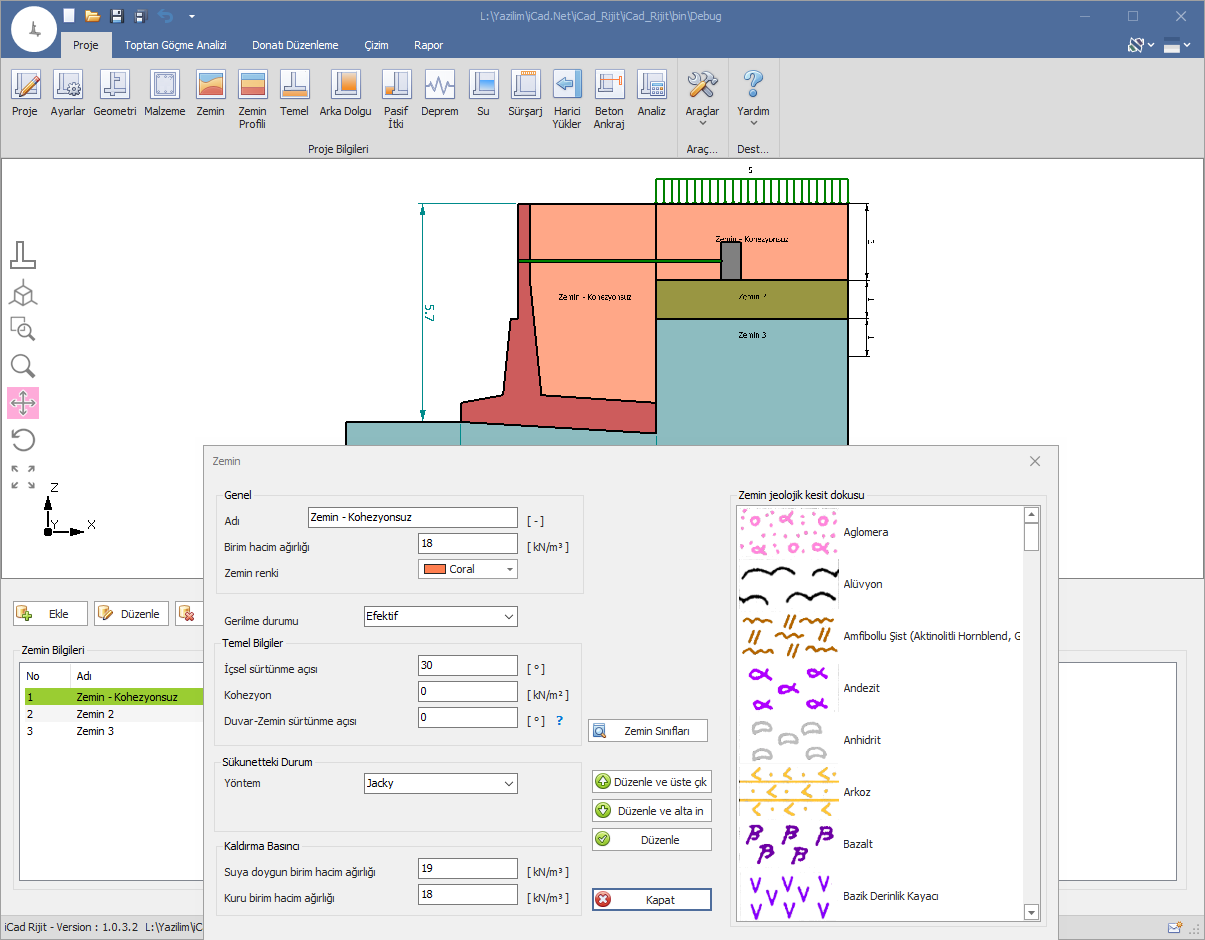

Multiple soil layers can be defined for effective and total stress conditions.

The bearing capacity can be calculated and reported according to TBDY based on the properties of the wall and soil.

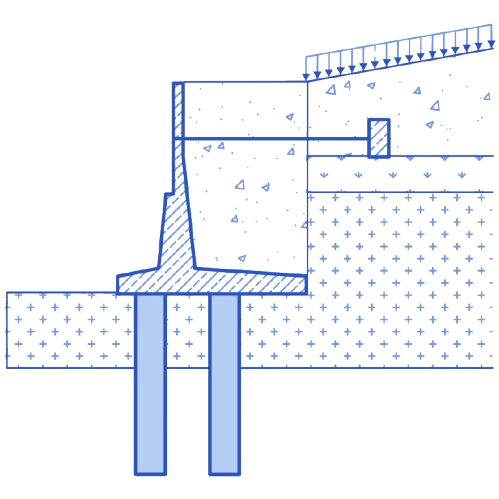

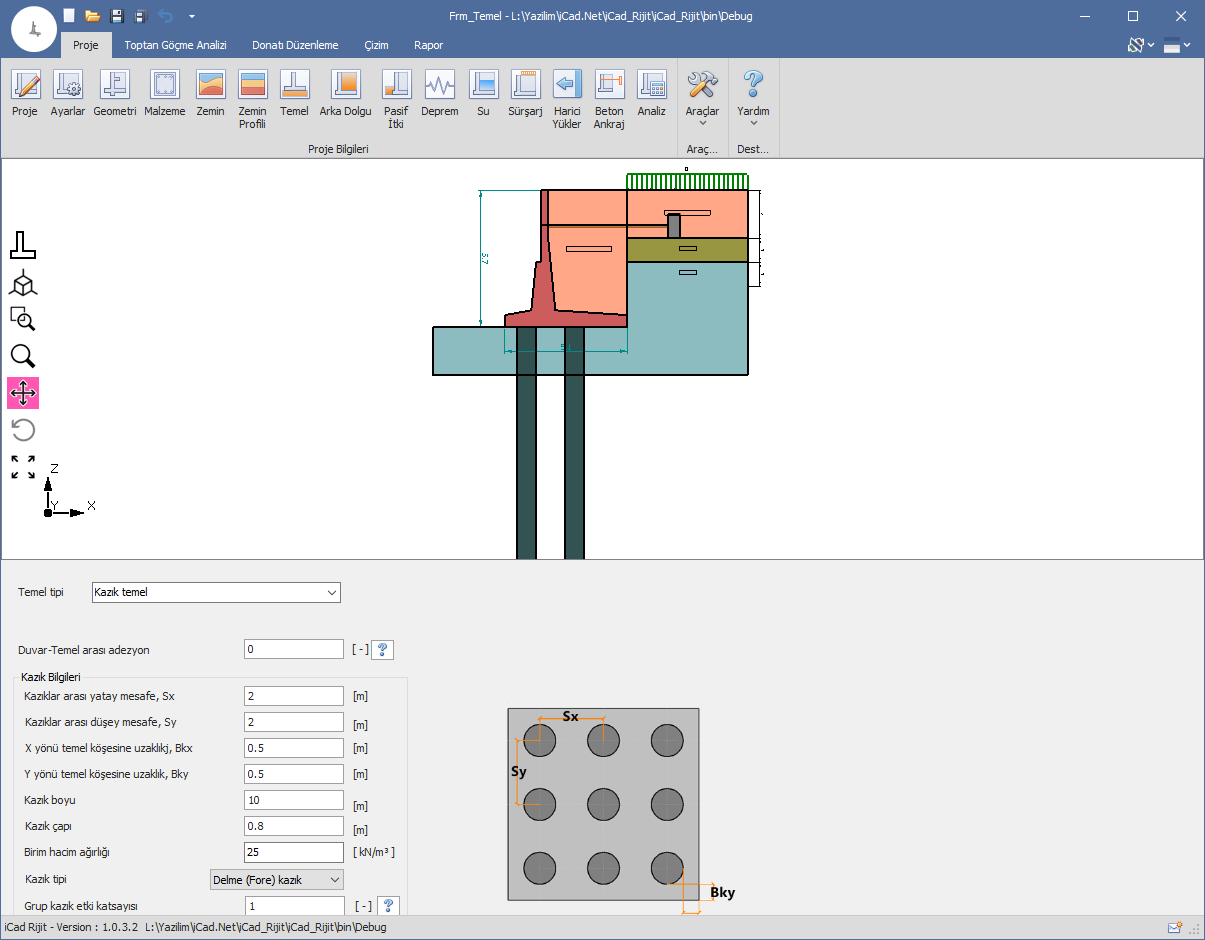

The vertical bearing capacity of the pile foundation defined under the wall can be calculated.

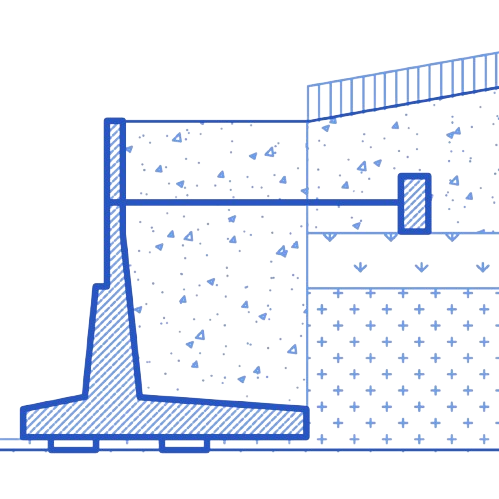

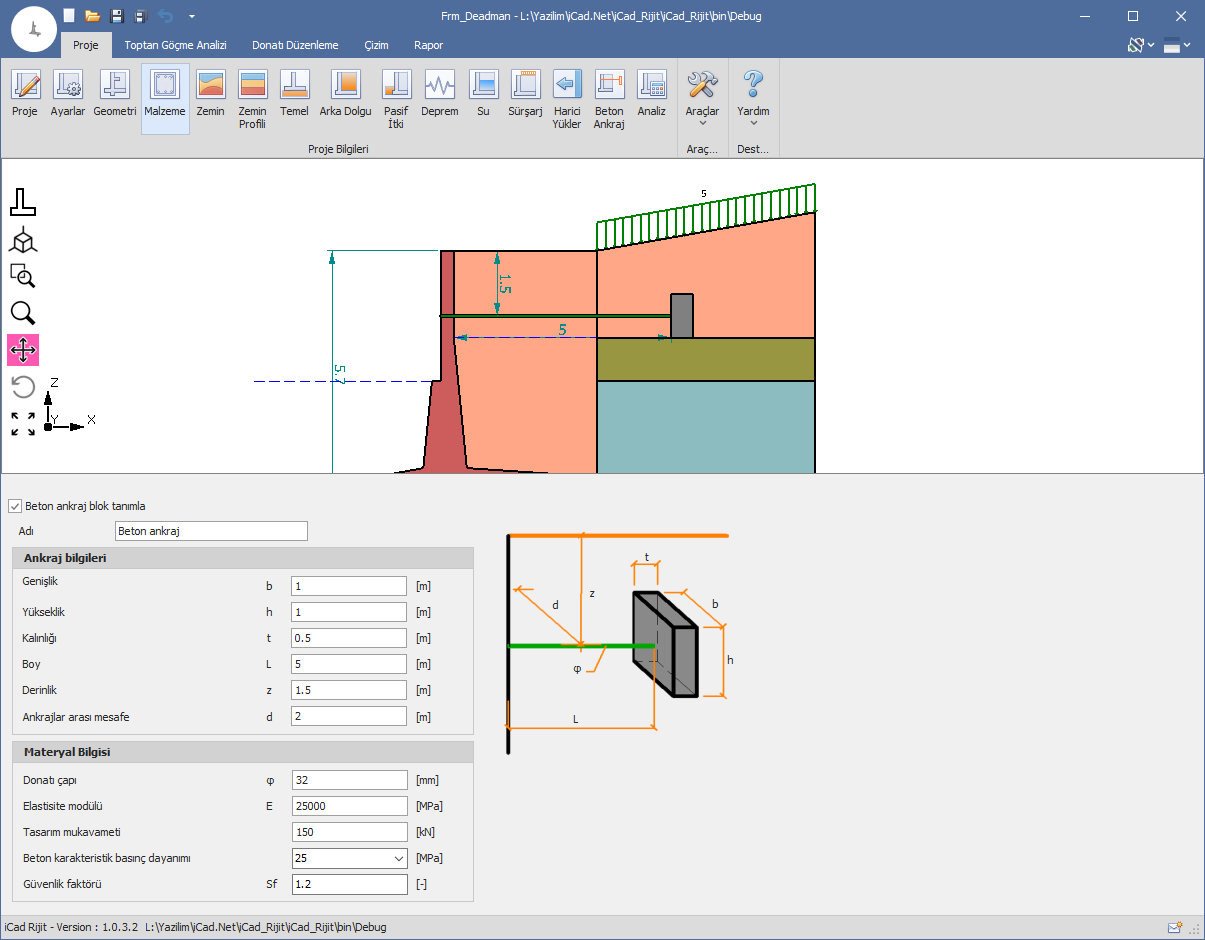

The stability of the wall can be increased by defining a concrete block anchor (deadman) behind the wall.

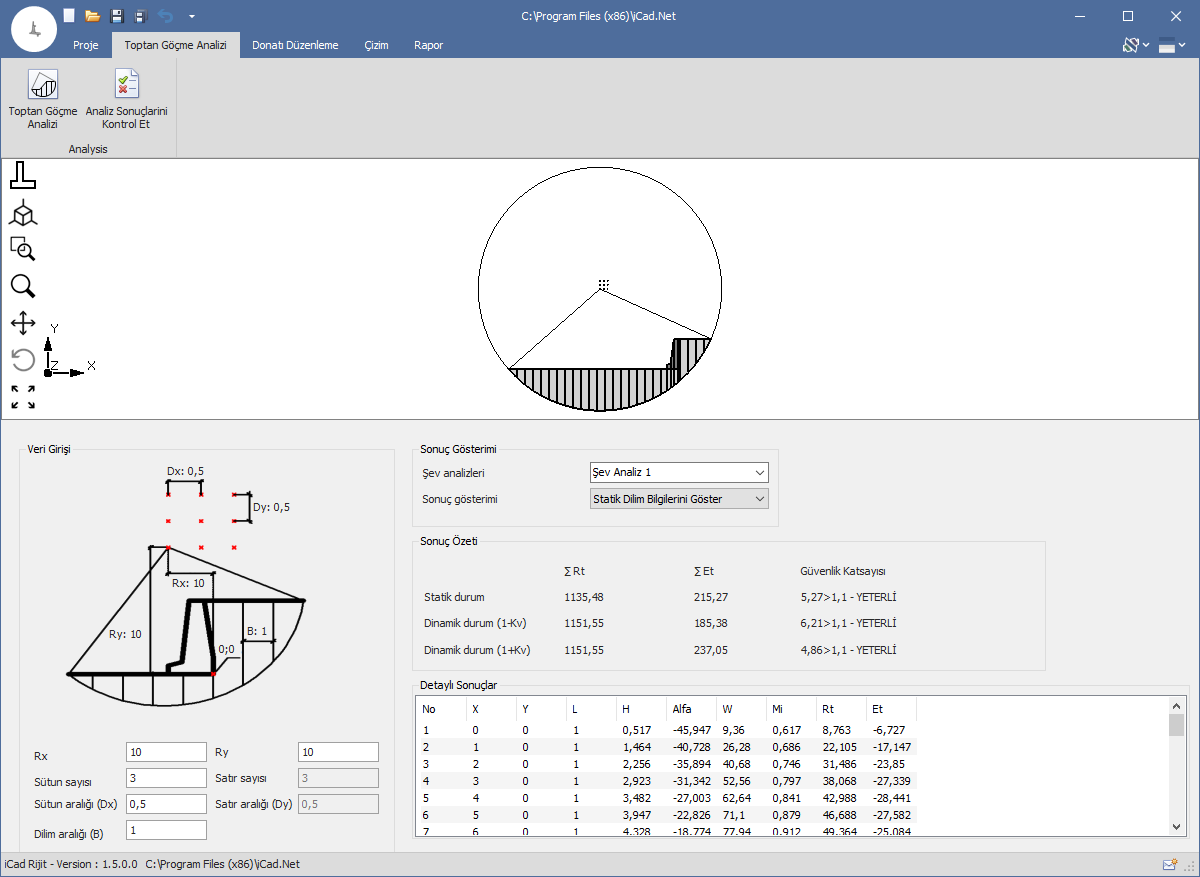

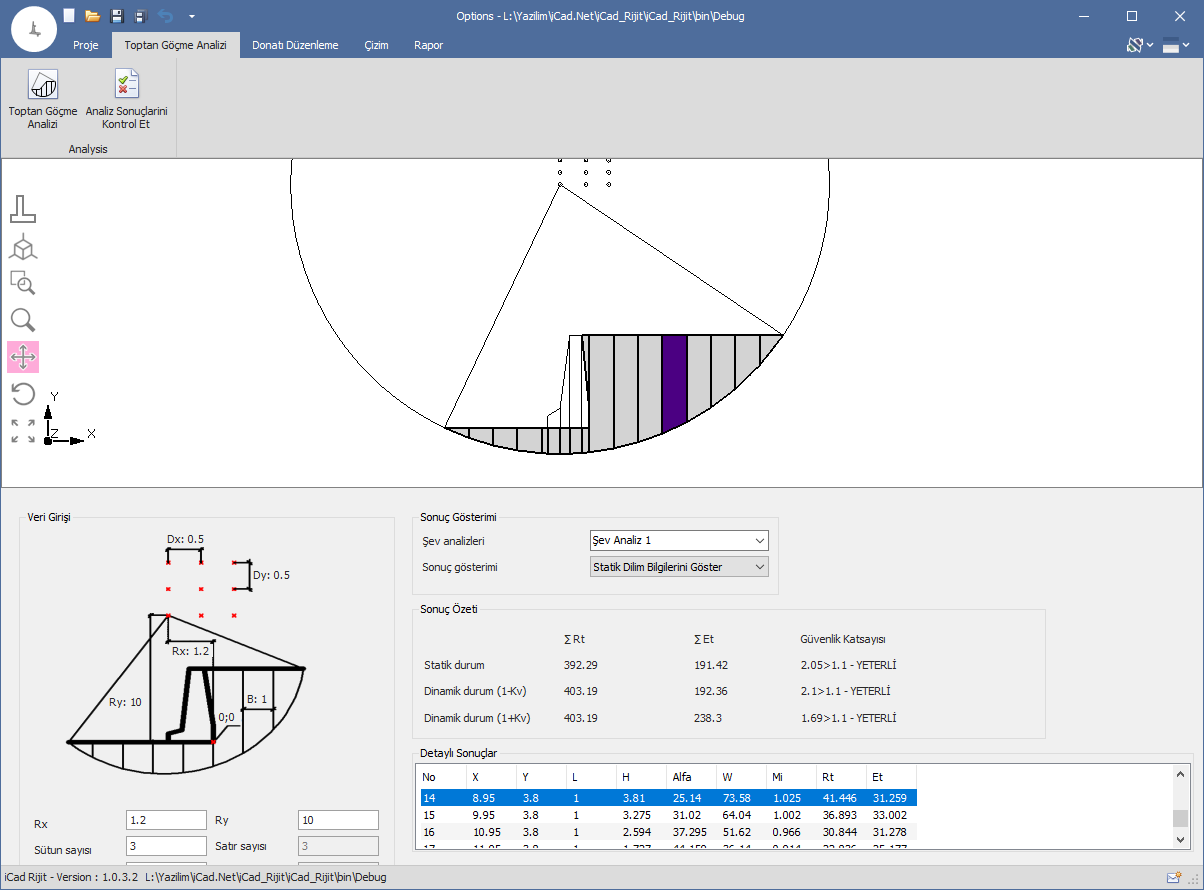

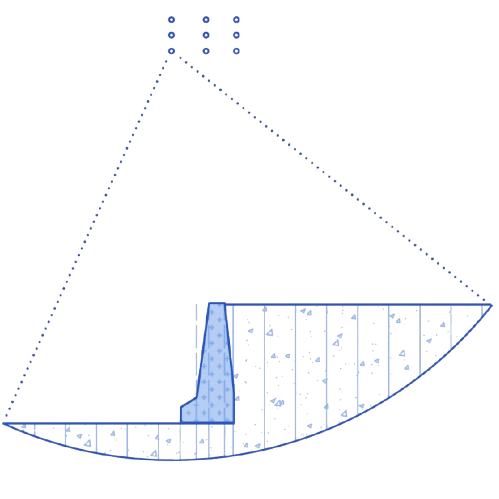

A global collapse analysis can be performed for static and dynamic conditions according to TBDY 2018.

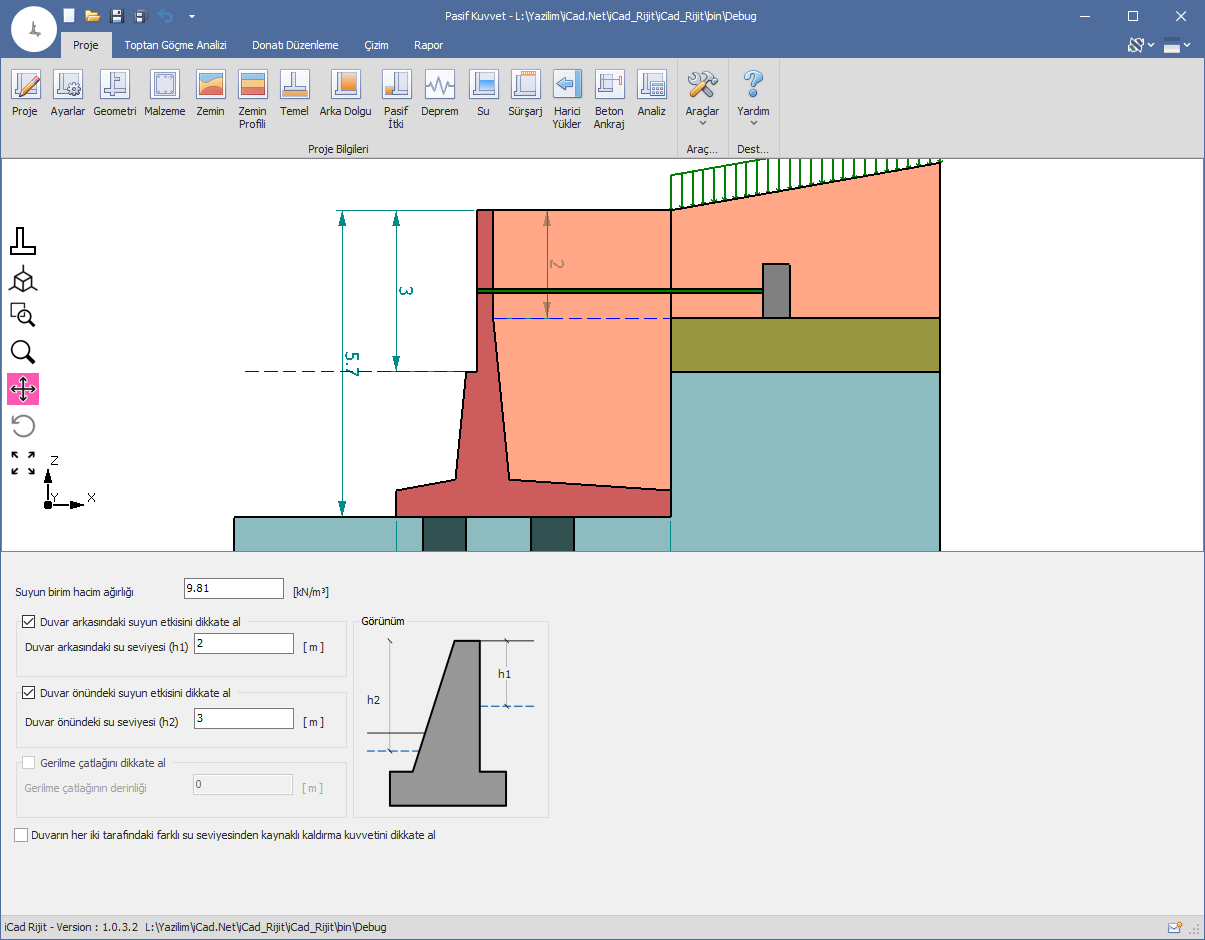

The static and dynamic effects of groundwater behind and in front of the wall can be considered. The buoyancy force of the water can also be taken into account.

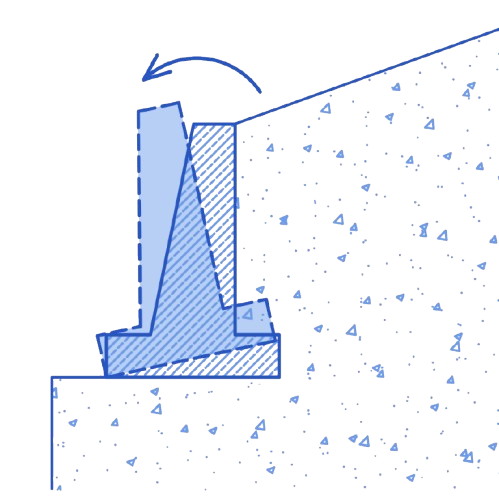

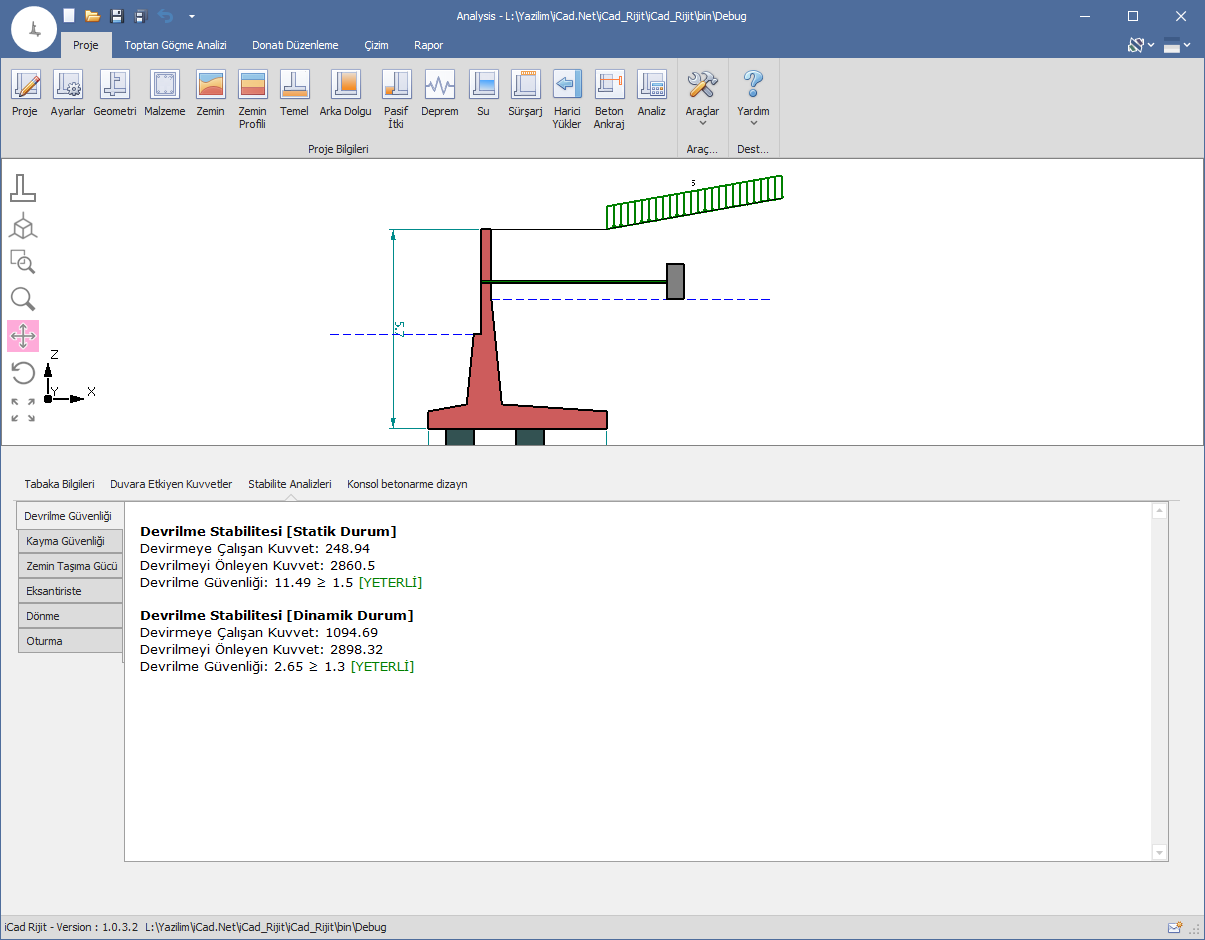

• Overturning safety
• Sliding safety
• Bearing capacity check
• Settlement check
• Eccentricity check
• Rotational checks can be performed.

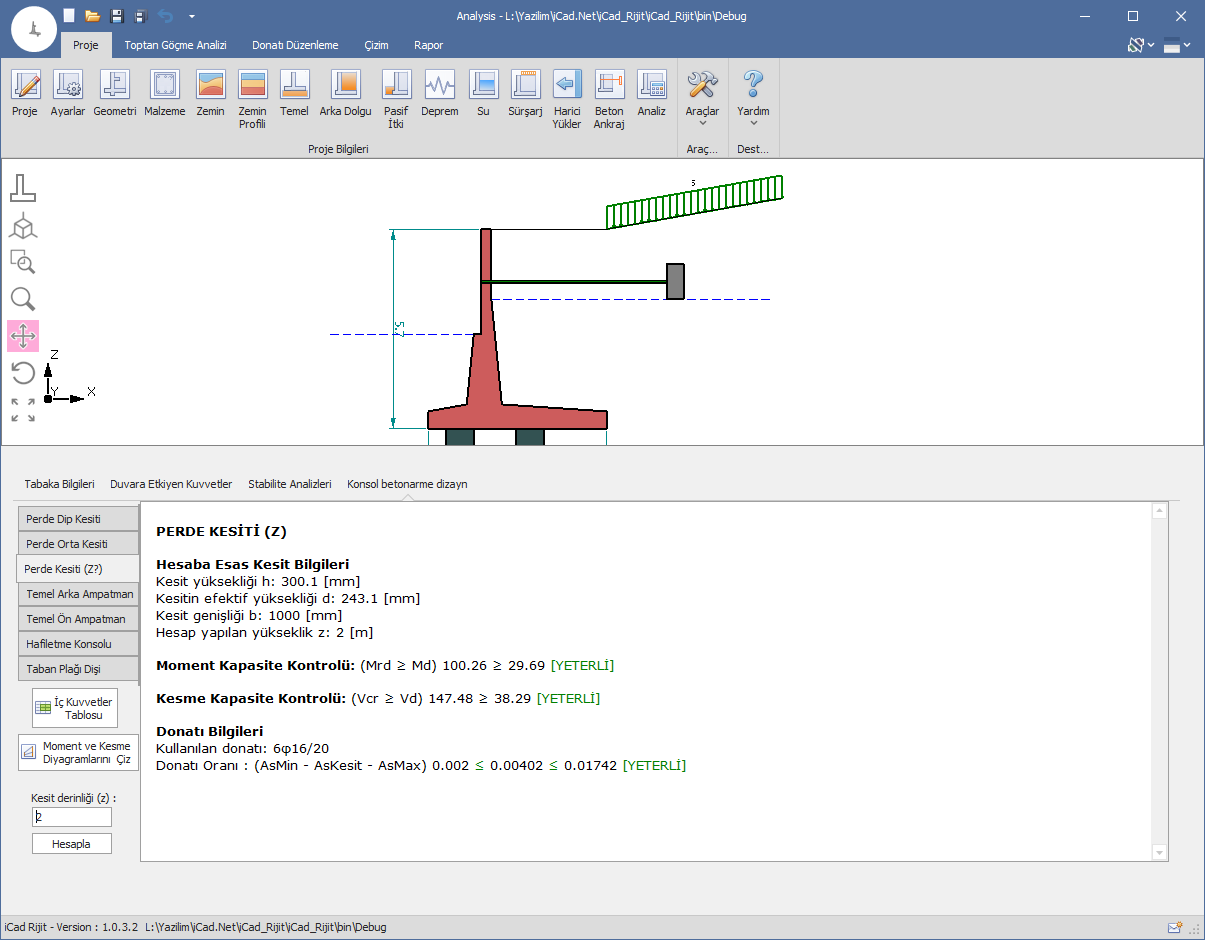

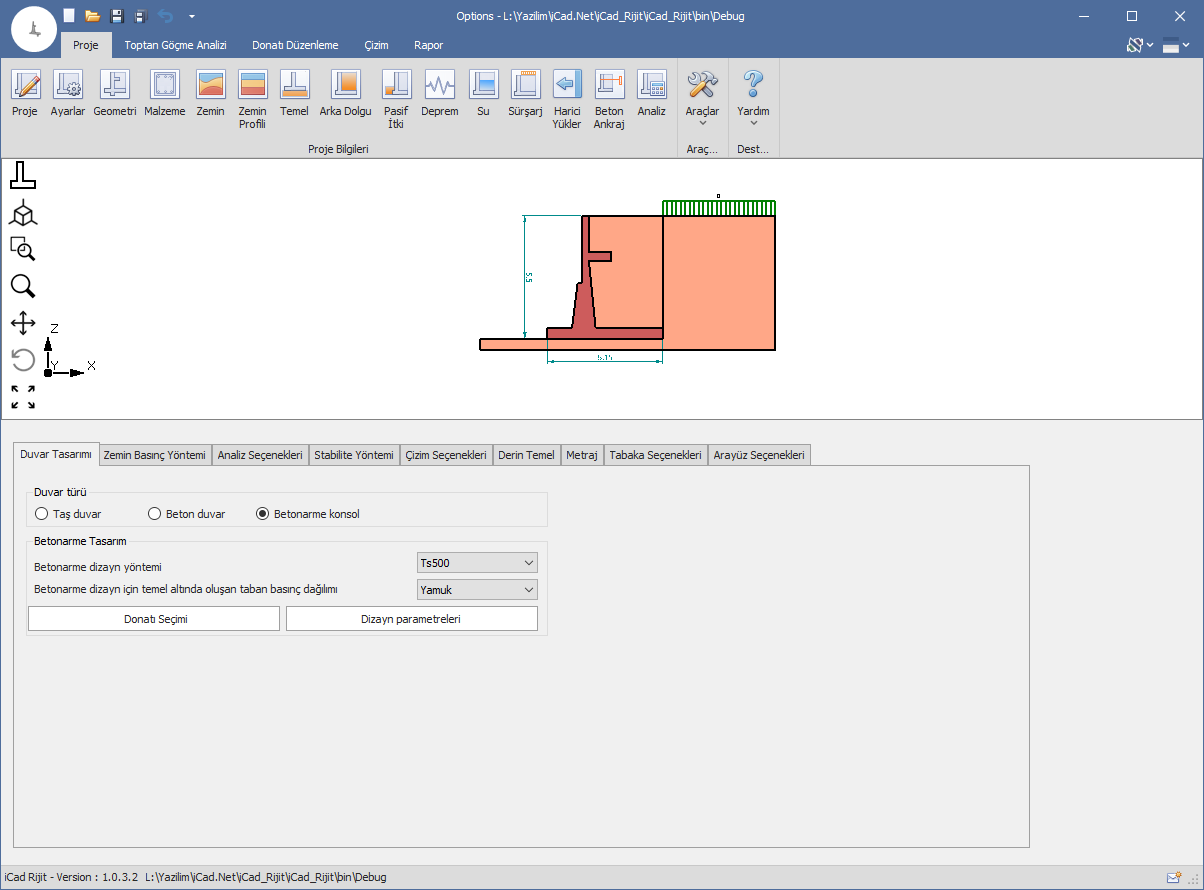

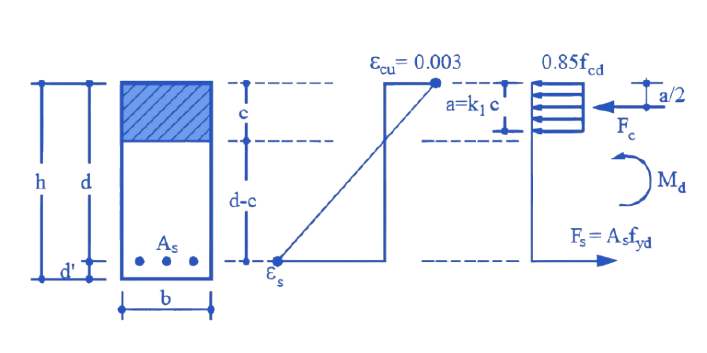

Section calculations for stone walls, concrete, and reinforced concrete cantilever walls can be performed according to different regulations.

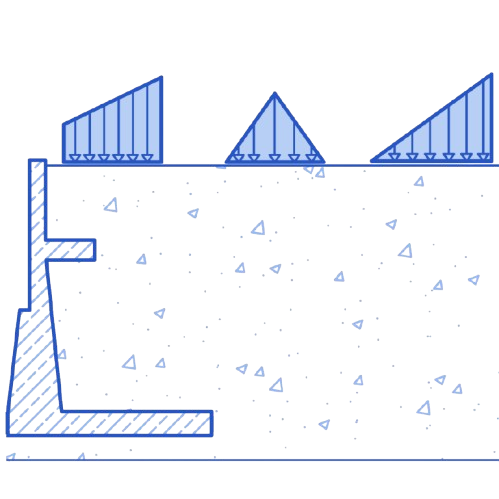

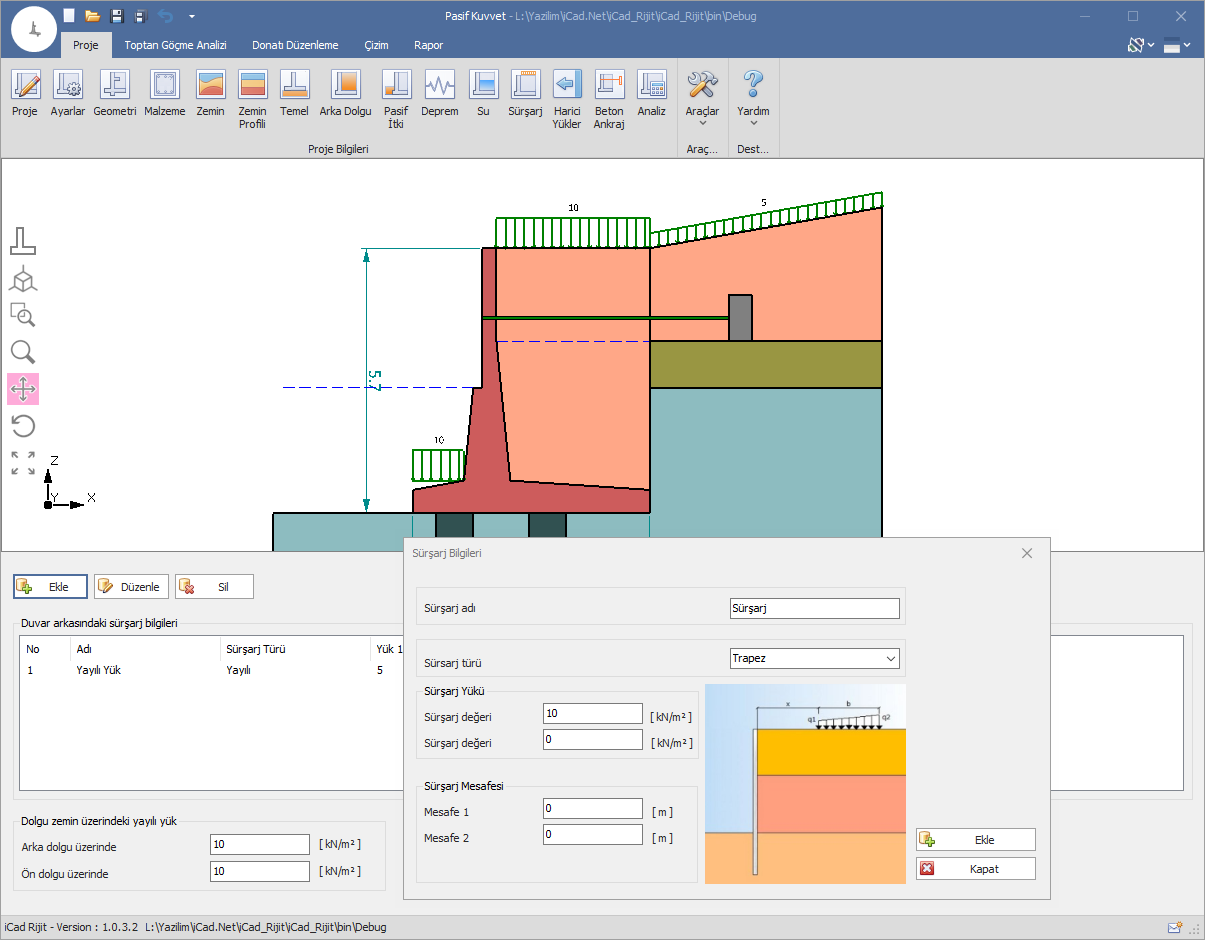

• Distributed
• Strip
• Trapezoidal
• Triangular
• Point load
• Line load
  Can be defined.

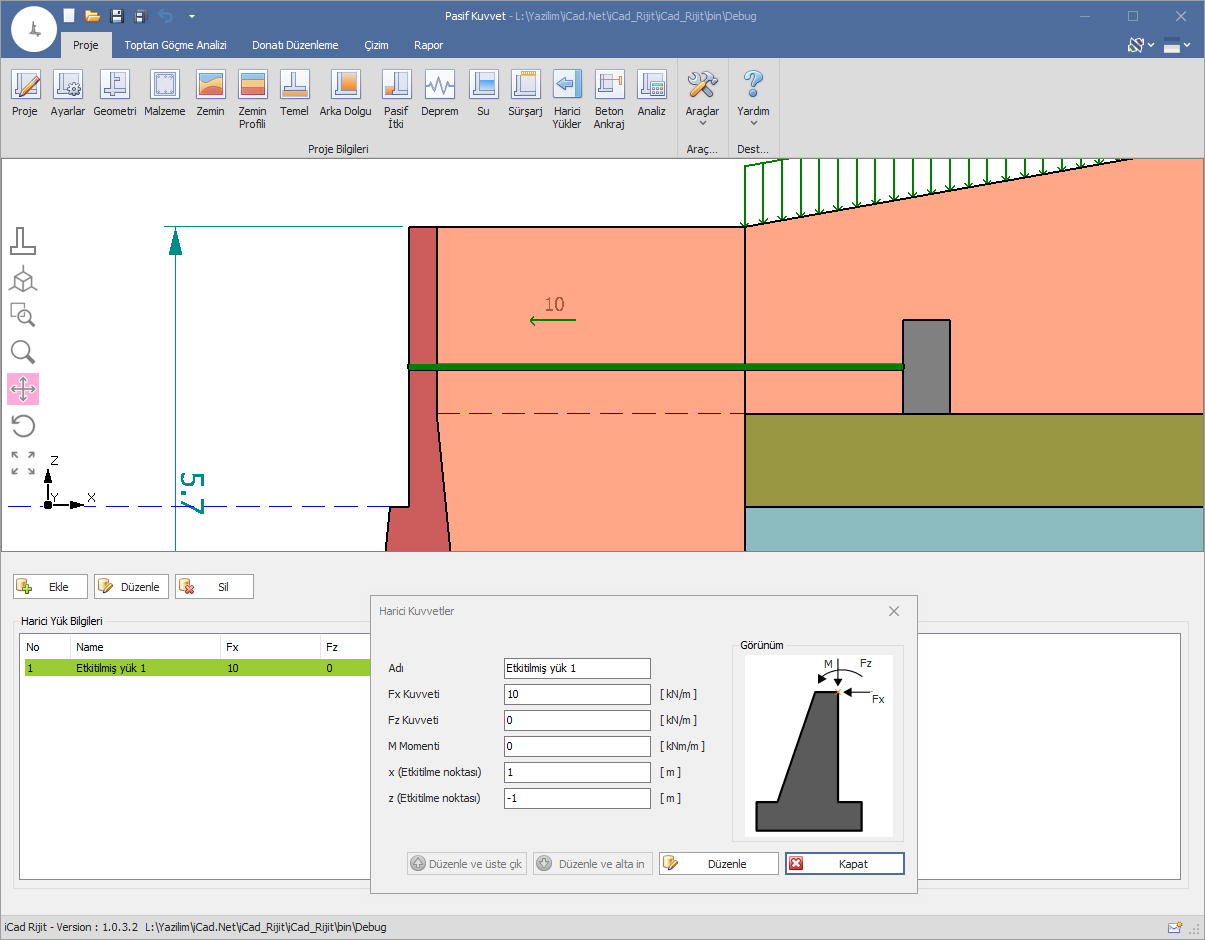

Multiple Fx, Fy, and moment forces can be defined at any point.

• Barbican
• Drainage pipe
• Impermeable layer
• Gravel concrete
• Reinforced concrete foundation under the stone wall

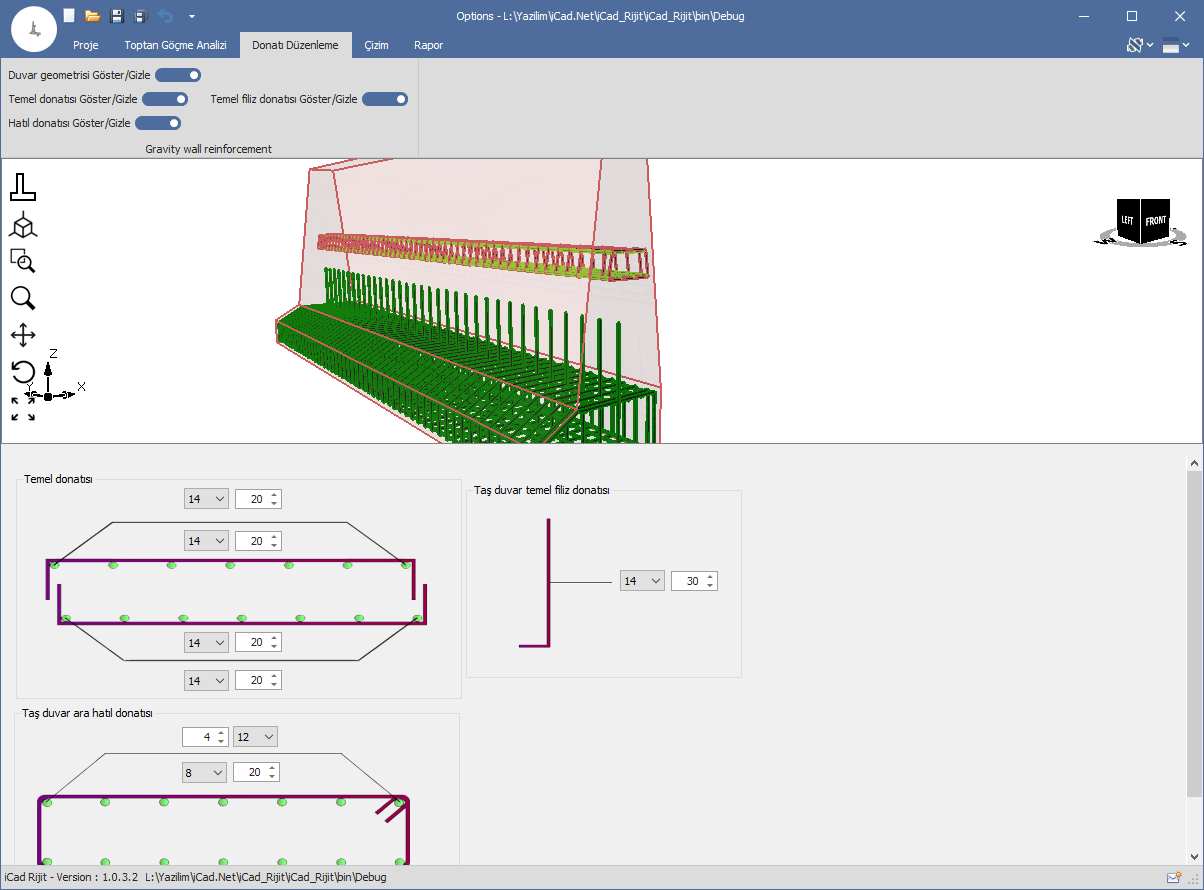

• Reinforced concrete tie beam drawings in the stone wall body can be made.

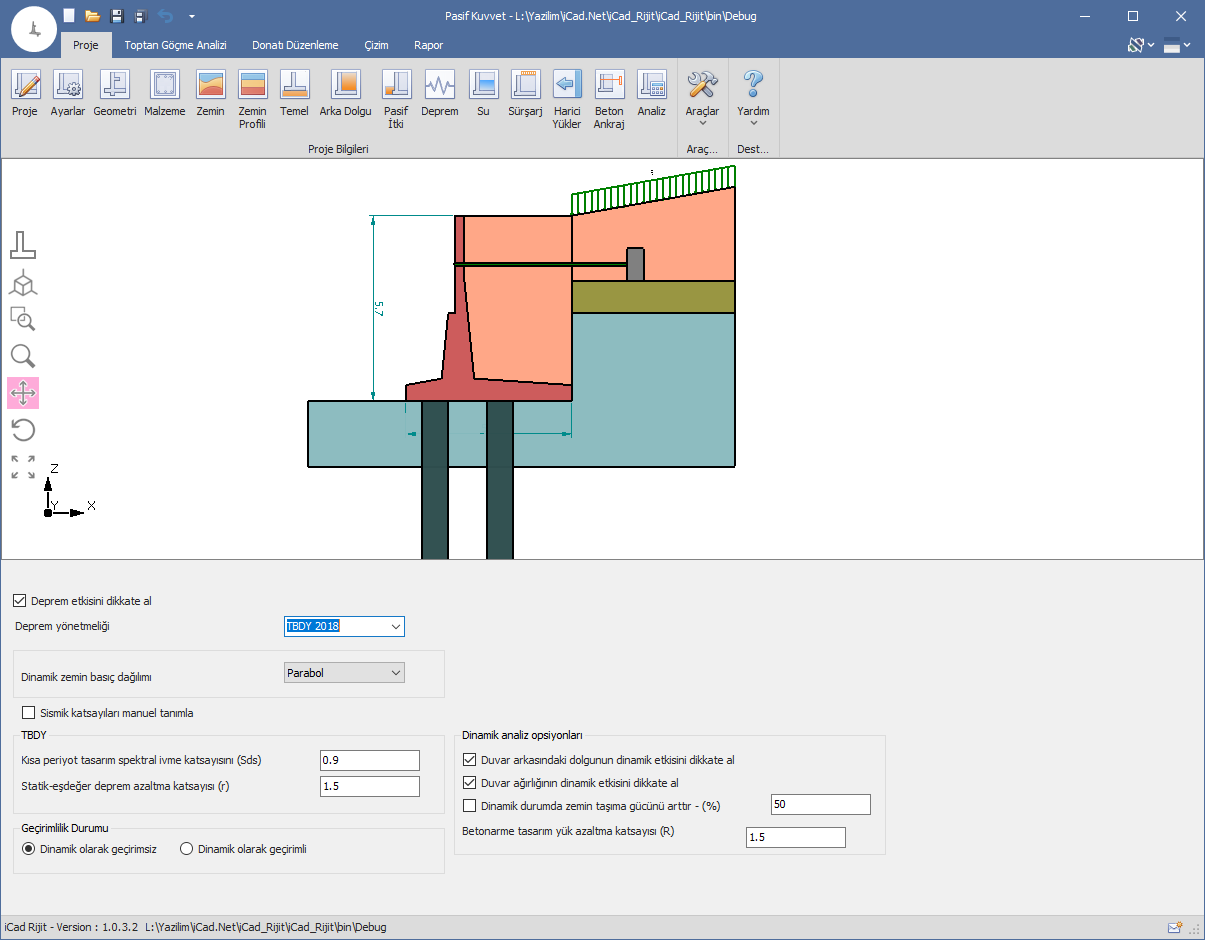

Dynamic forces can be calculated according to different earthquake regulations (TBDY, ABYYHY, EC2, BIS). The dynamic effect of the wall and the backfill can optionally be considered.

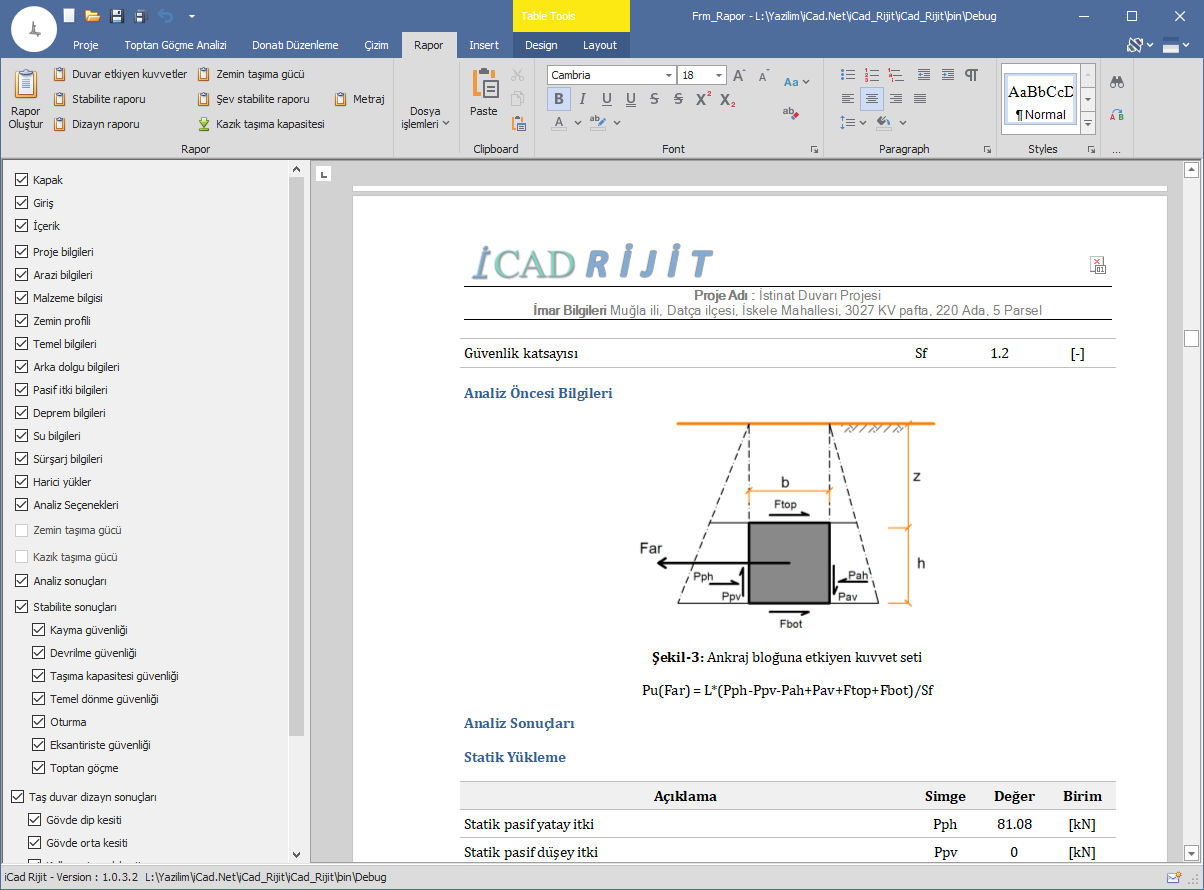

The report editor allows editing of the report. Text in the report can be changed, and tables or images can be added to the report.

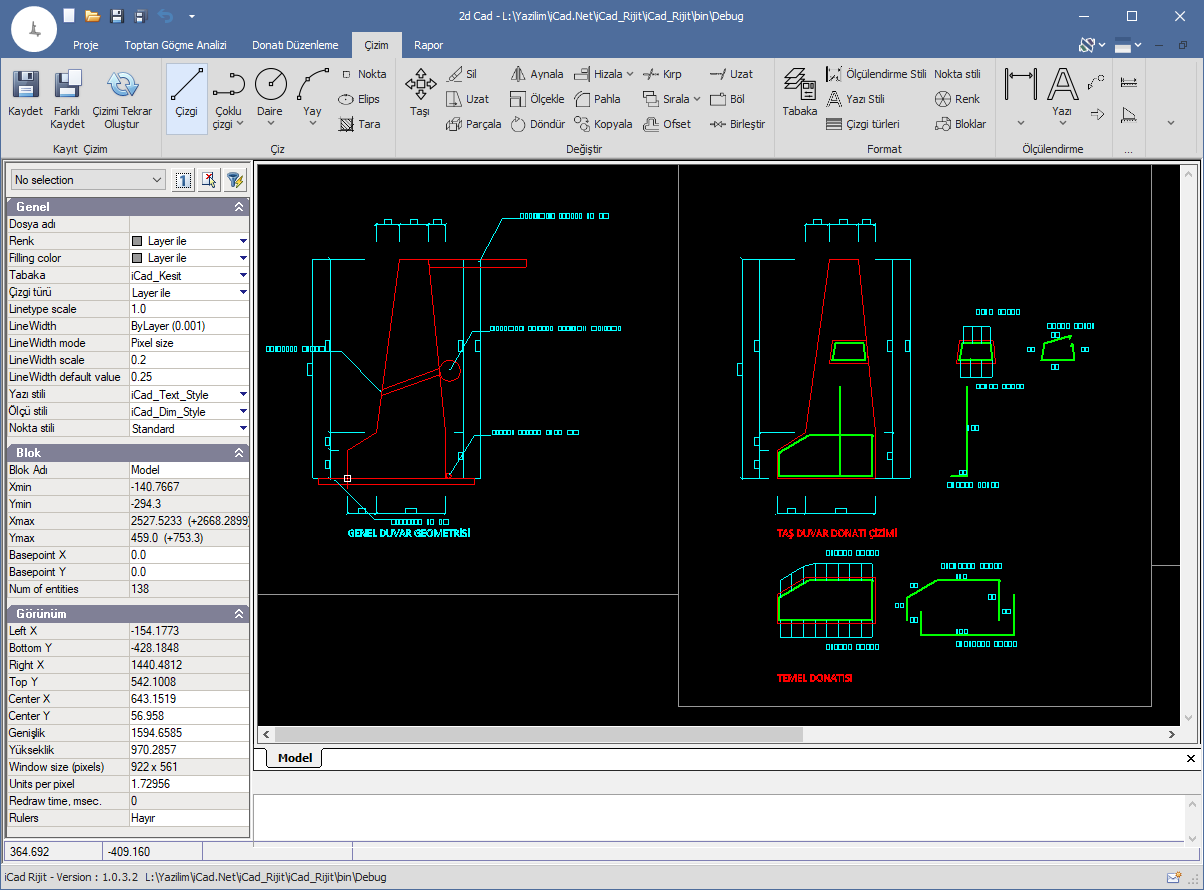

The integrated drawing editor allows for 2D CAD operations on the drawing. Drawings can be exported as DWG and DXF files.

With the screenshot tool, images captured from the screen can be added to the desired section of the report. The added image is automatically included in the list of figures.

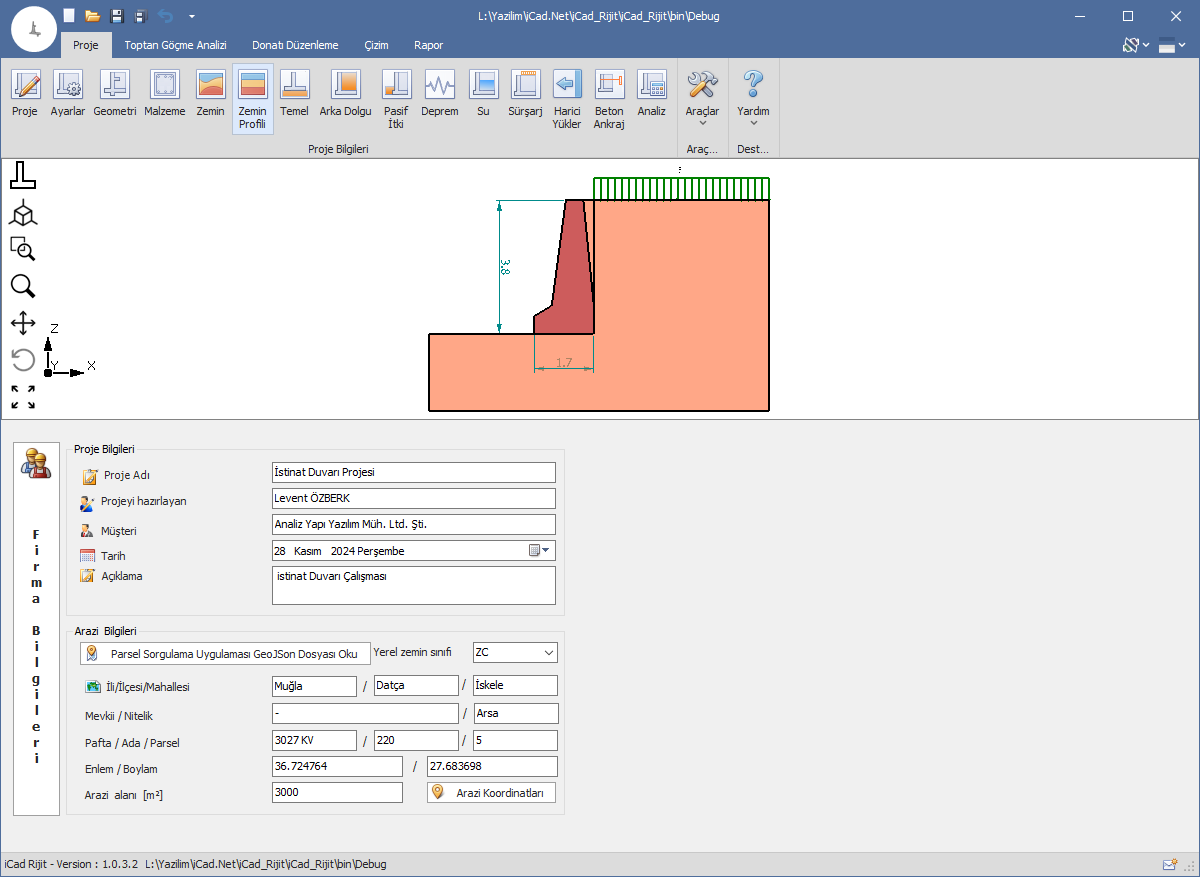

With the GeoJson file downloaded from the parcel query screen, information such as block, plot, parcel, attributes, area, and land coordinates can be obtained. Additionally, the Sds value can be approximated.

For stone walls, quantities of sand, cement, and stone can be calculated.
For reinforced concrete cantilever walls, quantities of concrete and rebar can be calculated.
